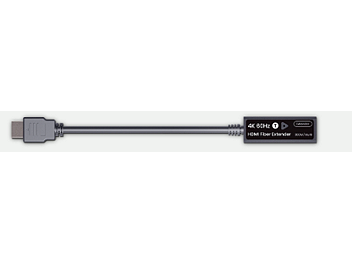

Globalmediapro SCT HE01FE-4K6G Compact HDMI Fiber Extender 300m (Transmitter and Receiver)

by Globalmediapro
In Stock $727.00
Globalmediapro SCT HE01FE-4K6G Compact HDMI Fiber Extender 300m (Transmitter and Receiver)
Image gallery (3)
HE01FE-4K6G is an HDMI extender that uses fiber optic cable with an LC connection to transmit uncompressed 4K 60Hz HDMI signals

It supports EDID and HDCP pass-through over multi-mode fiber

Its small, compact size and pigtail design allow for easy installation in any AV application

Resolution up to 4K60Hz
Transmission distance up to 300m over multi-mode fibers
Built-in LC Fiber Connector
Requires power only on the receiver side, no additional power is needed for the transmitter
Supports EDID and HDCP passthrough

Specifications

COMPLIANCE

Standard
HDMI 2.0
HDCP 2.2

Max. Video Resolution: 4K60Hz 4:4:4
Max. Transmission Distance: Multi-mode Fiber 300m
Wavelength: 850nm
Dynamic Range Standard: SDR, HDR, HDR10, HDR10+, Dolby Vision

Audio Format
PCM 2CH, 5.1CH, 7.1CH
Dolby True HD, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3), Dolby Atmos (AC4)
DTS, DTS-HD Master Audio, DTS: X

PORTS & INTERFACES

Video Input
Transmitter: 1 x HDMI Type-A (Pig-tail)
Receiver: 1 x LC Fiber

Video Output
Transmitter: 1 x LC Fiber
Receiver: 1 x HDMI Type-A (pig-tail)

Power Input
Transmitter: 1 x USB Type-C
Receiver: 1 x USB Type-C

GENERAL

Power Supply
Transmitter: 5V (USB Type-C)
Receiver: 5V (USB Type-C)

Power Consumption
Transmitter: 0.70W
Receiver: 0.30W

Power Saving
Transmitter: 0.15W
Receiver: 0.25W

Operation temperature: 0 to 55oC
Storage temperature: -40 to 80oC
Humidity: Up to 95%
Max. Operating Altitude: 2000m

Dimension

Transmitter:
62.2 x 25 x 12mm (w/o pig-tail)
252.9 x 25 x 12mm (with pig-tail)

Receiver:
62.2 x 25 x 12mm (w/o pig-tail)
252.9 x 25 x 12mm (with pig-tail)

Weigh
Transmitter: 45.6 g
Receiver: 45.6 g

In the Box

Transmitter
Receiver
