Standard
HDMI 2.0
HDCP 2.2

Max. Video Resolution: 4K 60Hz
Max. Transmission Distance: 160m over CAT5e

Dynamic Range Standard: SDR, HDR, HDR10, HDR10+, Dolby Vision

Audio Format
PCM 2CH, 5.1CH, 7.1CH
Dolby True HD, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3), Dolby Atmos (AC4)
DTS, DTS-HD Master Audio, DTS: X

Analog Audio
Impedance: 500 Ohm
Signal-to-noise Ratio (SNR): 114dB (A-weighted)
Dynamic Range: 114dB
THD+N: -94dB

RS232 Baud Rate: 115200 bps

IR Support
Transmitter: 20-60kHz, +/-45o, 5M
Receiver: 20-60kHz, +/-45o, 5M

PORTS & INTERFACES

Video Input
Transmitter: 1 x HDMI(R) Type-A
Receiver: 1 x RJ45

Video Output
Transmitter: 1 x RJ45
Receiver: 1 x HDMI(R) Type-A

Video Loop-out
Transmitter: 1 x HDMI(R) Type A
Receiver: -

Analog Audio Output
Transmitter: -
Receiver: Terminal Block 5-Pin

IR

External Transmitter: 3.5mm Stereo
Phone Jack: 20~60kHz / +/-45o / 5M

External Receiver: 3.5mm Stereo
Phone Jack 20~60kHz / +/-45o / 5M

RS232
Transmitter: 1 x 3.5mm Phone Jack
Receiver: 1 x 3.5mm Phone Jack

GENERAL

Power Supply: 5V 2A

Power Consumption
Transmitter: 5.5W
Receiver: 5.15W

Power Saving
Transmitter: 1.9W
Receiver: 3.15W

Operation temperature: 0 to 55oC
Storage temperature: -40 to 80oC
Humidity: Up to 95%
Operating Altitude: 2000m

Dimension
Transmitter: 123 x 88 x 32mm
Receiver: 123 x 125 x 32mm

Weigh
Transmitter: 254g
Receiver: 344g

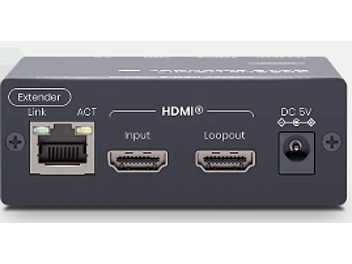

Transmitter
Receiver
