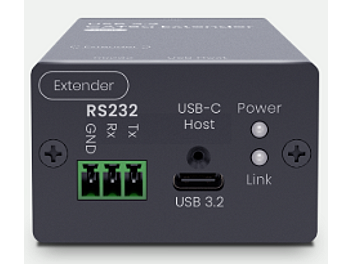

Globalmediapro SCT UE03H USB 3.2 Gen 1 CAT6a/7 Extender (Transmitter and Receiver)

by Globalmediapro
In Stock $345.00
Globalmediapro SCT UE03H USB 3.2 Gen 1 CAT6a/7 Extender (Transmitter and Receiver)
Image gallery (4)
UE03H is a USB 3.2 Gen 1 extender designed to carry USB 3 signals up to 100 m using Cat6a/7 Ethernet cable

It is fully backward compatible with USB 2.0 and USB 1.1 devices

It is ideal for multiple applications, including USB cameras, touch panels, and other USB 3.0, USB 2.0, or USB 1.1 devices

USB 3.2 Gen 1 up to 5Gbps (backward compatible with USB 2.0 & USB 1.0)
Transmission distance up to 100m with Cat6a cable
RS232 optional extension
Compatible with USB 2.0 and USB 1.0 devices
USB Type-C port on both sides

Specifications

SUPPORT

Compliance: USB3.2 Gen1, USB2.0, USB1.1
Data Rate: nUSB3 up to 5Gbps bidirectional
Max. Transmission Distance: 100M over CAT6a/7

PORTS & INTERFACES

USB Data
Transmitter: 1 x USB Type-C
Receiver: 3 x USB Type-A, 1 x USB Type-C

Transmission Medium
Transmitter: 1 x RJ45
Receiver: 1 x RJ45

RS232
Transmitter: 1 x 3-Pin Terminal Block
Receiver: 1 x 3-Pin Terminal Block

Console
Receiver: 1 x 3.5mm Phone Jack

GENERAL

Power Supply
Transmitter: 5V 0.5A
Receiver: 12V 0.5A

Power Consumption: 2.35W

Operation temperature: 0 to 55oC
Storage temperature: -40 to 80oC
Operating Altitude: 2000m
Humidity: Up to 95%

Dimension
Transmitter: 50 x 93 x 32mm
Receiver: 87 x 123 x 32mm

Weigh
Transmitter: 190g
Receiver: 210g

In the Box

Transmitter
Receiver
